¥4,880

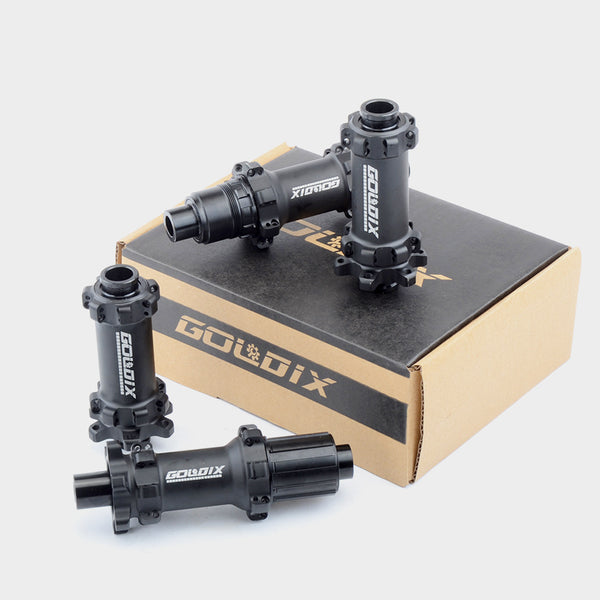

  Brand: GOLDIX Model: GDX370 Star ratchet:36T/60T(UPGRADE) Weight: Front hub 135g   Rear hub235g Bearing: Front sealed bearing* 2 Rear sealed bearing* 4 Material: 7005Aluminium   Hub spoke length table Wheel...
DT370, DT240相当の高精度・軽量のスターラチェットハブ。対応モデル:シマノハブ、シマノマイクロスプライン、スラムハブ、スラムXD ブランド名: GOLDIX モデル名: GDX370 スターラチェット:36T  (60Tへのアップグレード可) 重量: Front hub 135g   Rear hub235g ベアリング: Front sealed bearing* 2 Rear sealed bearing* 4 材質: 7005Aluminium   Hub spoke length table...
Availability: Out Of Stock



Brand: GOLDIX
Model: GDX370
Star ratchet:36T/60T(UPGRADE)
Weight: Front hub 135g   Rear hub235g
Bearing: Front sealed bearing* 2
Rear sealed bearing* 4
Material: 7005Aluminium



Hub spoke length table
Wheel size Rim height Drive side/Non-drive side Use spoke length(mm)
27.5er 23(mm) Drive side 281
Non-drive side 282
24(mm) Drive side 280
Non-drive side 281
25(mm) Drive side 279
Non-drive side 280
26(mm) Drive side 278
Non-drive side 279
27(mm) Drive side 277
Non-drive side 278
28(mm) Drive side 276
Non-drive side 277
29(mm) Drive side 275
Non-drive side 276
29er 23(mm) Drive side 300
Non-drive side 301
24(mm) Drive side 299
Non-drive side 300
25(mm) Drive side 298
Non-drive side 299
26(mm) Drive side 297
Non-drive side 298
27(mm) Drive side 296
Non-drive side 297
28(mm) Drive side 295
Non-drive side 296
29(mm) Drive side 294
Non-drive side 295
How to calculate the length of the hub spoke: increase the rim height by 1mm, reduce the spoke length by 1mm, reduce the rim height by 1mm, and increase the spoke lenght by 1mm



DT370, DT240相当の高精度・軽量のスターラチェットハブ。
対応モデル:シマノハブ、シマノマイクロスプライン、スラムハブ、スラムXD

ブランド名: GOLDIX
モデル名: GDX370
スターラチェット:36T  (60Tへのアップグレード可)
重量: Front hub 135g   Rear hub235g
ベアリング: Front sealed bearing* 2
Rear sealed bearing* 4
材質: 7005Aluminium




Hub spoke length table
Wheel size Rim height Drive side/Non-drive side Use spoke length(mm)
27.5er 23(mm) Drive side 281
Non-drive side 282
24(mm) Drive side 280
Non-drive side 281
25(mm) Drive side 279
Non-drive side 280
26(mm) Drive side 278
Non-drive side 279
27(mm) Drive side 277
Non-drive side 278
28(mm) Drive side 276
Non-drive side 277
29(mm) Drive side 275
Non-drive side 276
29er 23(mm) Drive side 300
Non-drive side 301
24(mm) Drive side 299
Non-drive side 300
25(mm) Drive side 298
Non-drive side 299
26(mm) Drive side 297
Non-drive side 298
27(mm) Drive side 296
Non-drive side 297
28(mm) Drive side 295
Non-drive side 296
29(mm) Drive side 294
Non-drive side 295
How to calculate the length of the hub spoke: increase the rim height by 1mm, reduce the spoke length by 1mm, reduce the rim height by 1mm, and increase the spoke lenght by 1mm



*この商品は中国から発送致します。
*発送まで5日程かかる場合がございます。



GOLDIX GDX370 36T/60T Star ratchet hub shimano HG MS , sram XD GOLDIX GDX370 高精度スターラチェット36T /60T ハブ (DT240, 370ベース) SHIMANO / SRAM 対応
